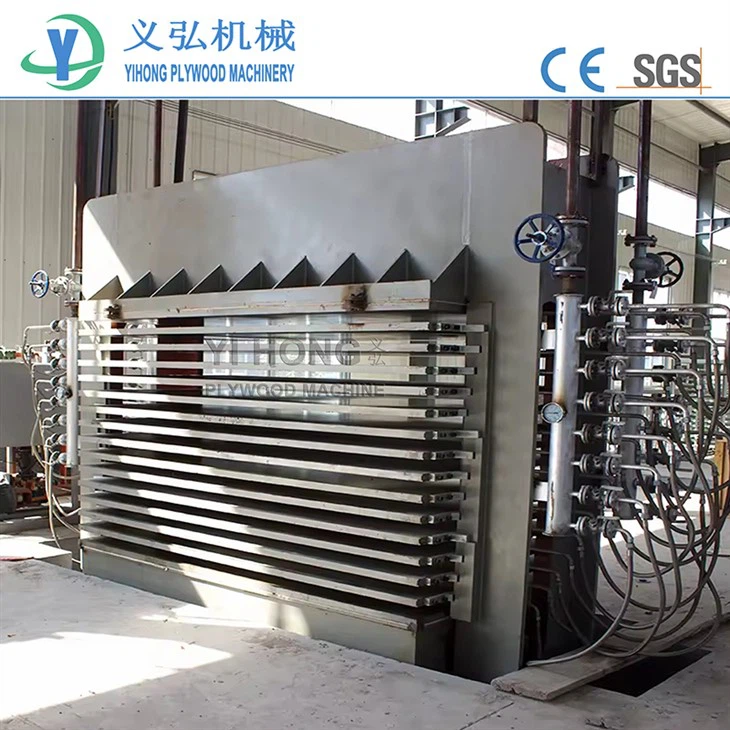

The plywood hot press utilizes Siemens PLC control and features 5 programmable pressure settings and 6 working modes, ensuring high-quality plywood production. Its key functions include:
Customizable Pressure: 400t, 500t, 600t, 800t, and other options available based on customer requirements.
Adjustable Platen Size: Standard sizes include 3'x6', 5'x5', 4'x8', with custom dimensions upon request.
Multi-Layer Design: Configurable as 8, 10, 12, 15, or 20-opening presses.
Automated Loading/Unloading: Optional automatic feed and discharge systems to reduce labor and improve efficiency.
Heavy-Duty Frame: Robust construction with 3-4 tons greater stability than conventional designs.
Easy Maintenance: Each platen features an accessible control unit for simplified servicing.
Dual Inlet/Outlet & Thermal Insulation: Ensures uniform heat distribution and energy efficiency.
Fast Closing Speed: Enhances production throughput.
| Parameter | Model A | Model B | Model C | ||
|---|---|---|---|---|---|
Plate Dimensions |
2700 × 1370 × 42 mm |
2700 × 1370 × 52 mm |
1700 × 1370 × 42 mm (Standardized width assumed) |
||
Product Size |
4 × 8 feet | 4 × 8 feet | 5 × 5 feet | ||
| Opening Gap | 70 mm | 90 mm | 70 mm | ||
| Opening NO. |
|
|
15 | ||
Plunger Cylinder Diameter |
380 mm × 2 / 180 mm × 1 | 300 mm × 4 / 200 mm × 1 | 250 mm × 4 / 180 mm × 1 | ||
| Working Stroke | 1400 mm | 1800 mm | 1050 mm | ||
| Capacity | 6000 kN | 8000 kN | 6000 kN | ||
| Max Pressure | 25 MPa | 25 MPa | 25 MPa | ||
| Motor Power | 26 kW | 33 kW | 26 kW | ||
| Closing Speed | 9 m/min | 9 m/min | 9 m/min | ||
Dimensions |
6200 × 1540 × 6300 | 6200 × 1520 × 6700 | 4900 × 1800 × 4800 | ||
Weight |
38,000 kg | 68,000 kg | 35,000 kg | ||
