Description

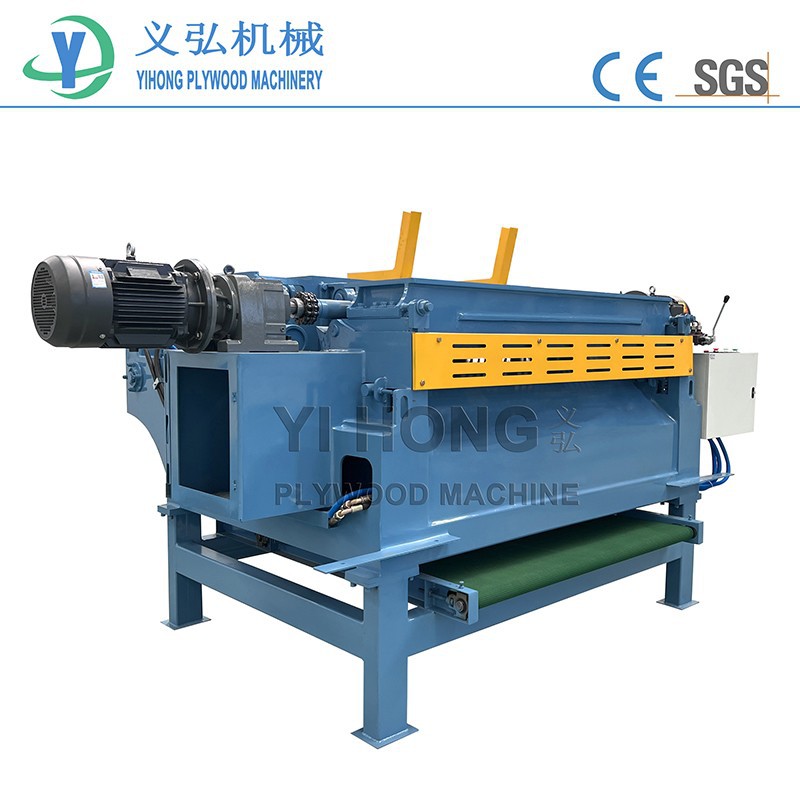

Log Debarker machine is spindle less peeling type. Various of model debarking machine was elected according to log length, log diameter, softwood and hardwood.
The hydraulic debarker is use for rotating and removing bark from wooden logs by two roller driven. Mainly apply to OSB Mills, wood veneer factory and plywood manufacturer.
Parameter
|
Model |
LD-L130C |
LD-L160C |
|
Max. Log Diameter |
Φ550 mm |
Φ600 mm |
|
Max. Log Length |
1500 mm |
1800 mm |
|
Knife Size |
1500x180x16 mm |
1800x180x16 MM |
|
Driven Roller |
Φ180 mm; sprocket type,chrome coating |
Φ180 mm; sprocket type,chrome coating |
|
Motor of Double Roller |
11 kw *1 |
11 kw *1 |
|
Motor of Single Roller |
11 kw *1 |
11 kw *1 |
|
Motor of Hydraulic Pump |
5.5 kw *1 |
5.5 kw *1 |
|
Reducer of Double Roller |
R87 Hardened Reducer *1 |
R87 Hardened Reducer *1 |
|
Reducer of Single Roller |
R87 Hardened Reducer *1 |
R87 Hardened Reducer *1 |
|
Log Support System |
supports bent wood; automatic knife gap adjustment |
supports bent wood; automatic knife gap adjustment |
|
Air Cooling System |
Reduce hydraulic oil temperature and increase working time |
Reduce hydraulic oil temperature and increase working time |
|
Total Power |
27.5 kw |
27.5 kw |
|
Dimension |
4600x2400x1200mm |
4600x2400x1200mm |
|
Total Weight |
4200 kg |
5200 kg |
Product Advantages
1.Heavy Duty Hydraulic System
Heavy-duty machine are more durable and more stable with hydraulic pump
2. Bend Log Holding System
Automatically adjust knife gap according to the shape and diameter of the log
3. Multi Blade System
set multi blade saw to crushing bark and veneer to wood chips for collecting
4. Air cooling system
Cooling hydraulic oil temperature and increase working time
